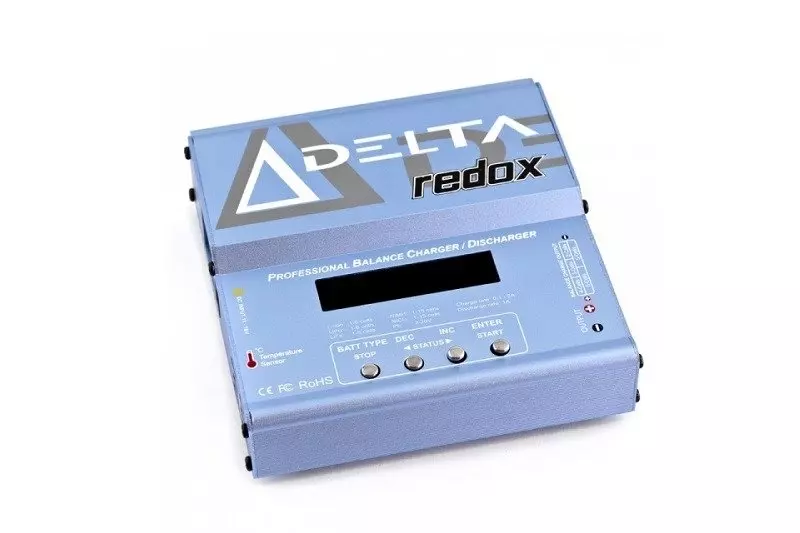

Delta Battery Charger with Integrated Balancer

Microprocessor-based battery charger with LCD display. The charger has the ability to rapidly charge various types of packs, and is equipped with a cell balancer for more accurate charging of lithium packs, a high-performance microprocessor and specialised software.

The Delta charger is compatible with most commercially available batteries. Primarily with packs such as Lithium-Polymer (Li-Po), Lithium-Ion (Li-Ion), and Lithium-Iron (Li-Fe). In addition to compatibility, the charger also offers safety its automated software will inform the user of any problems. In addition, the charger is equipped with an internal, independent lithium cell balancer, so there is no need to connect a separate one.

The kit includes the charger's power cord, so you don't have to worry about any adapters.

Technical data:

• Operating voltage:
• DC 11.0 ~ 15.0 V
• AC 230V, 50 Hz
• Output power:
• Max. charging power 50W
• Max. discharge power 5W
• Charging current: 0.1~5A
• Discharge current: 0.1~1.0A
• Balancing current: 300 mAh/cell
• Number of NiCD / NiMH cells supported: 1~15 cells
• Number of Li-Po/Fe/Ion cells supported: 1~6 cells
• Supported batteries: 2~20V

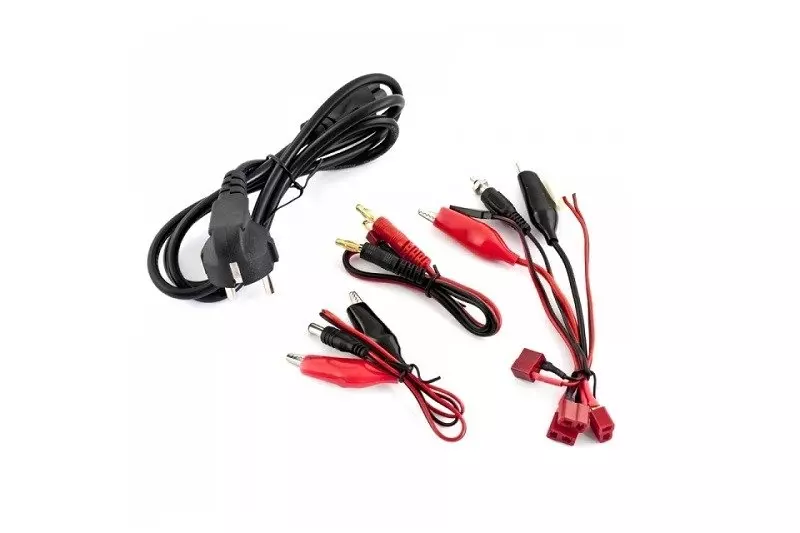

Kit includes:

• Power cord ~230V, 50Hz
• Power cable with crocodile clips 12VDC
• 2x "banana" cable Dean
• cable Dean Tamiya large
• Dean cable Crocodiles
• Dean cable Servo socket (Futaba type)
• Dean cable dummy candle (for charging 1.5V clips)

ATTENTION!
Before using the charger, please read the manual it contains all the operating information and safety rules to be observed when using the product.

NOTE: The product does not include an adapter for charging batteries with a Tamiya plug.
