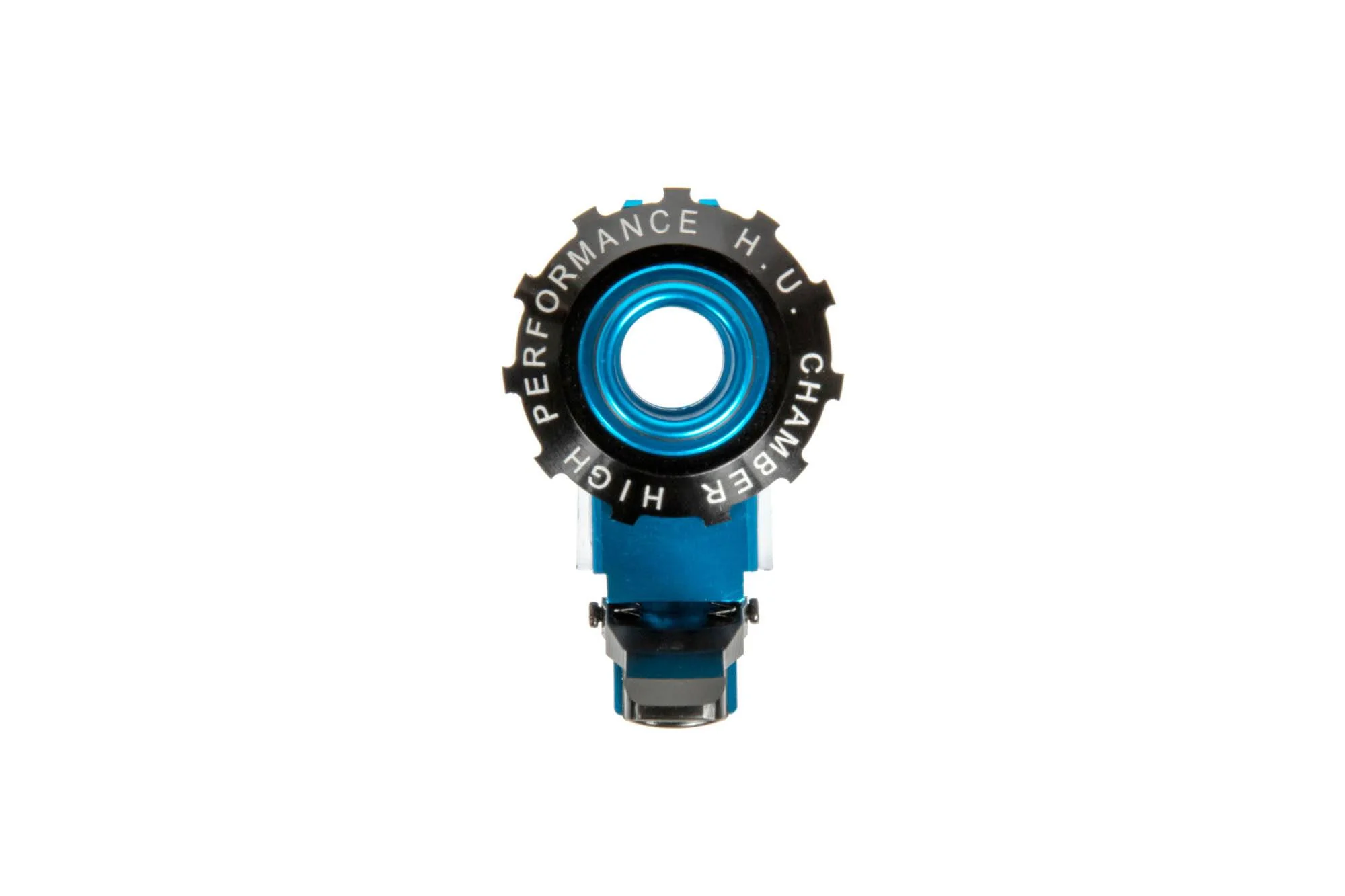

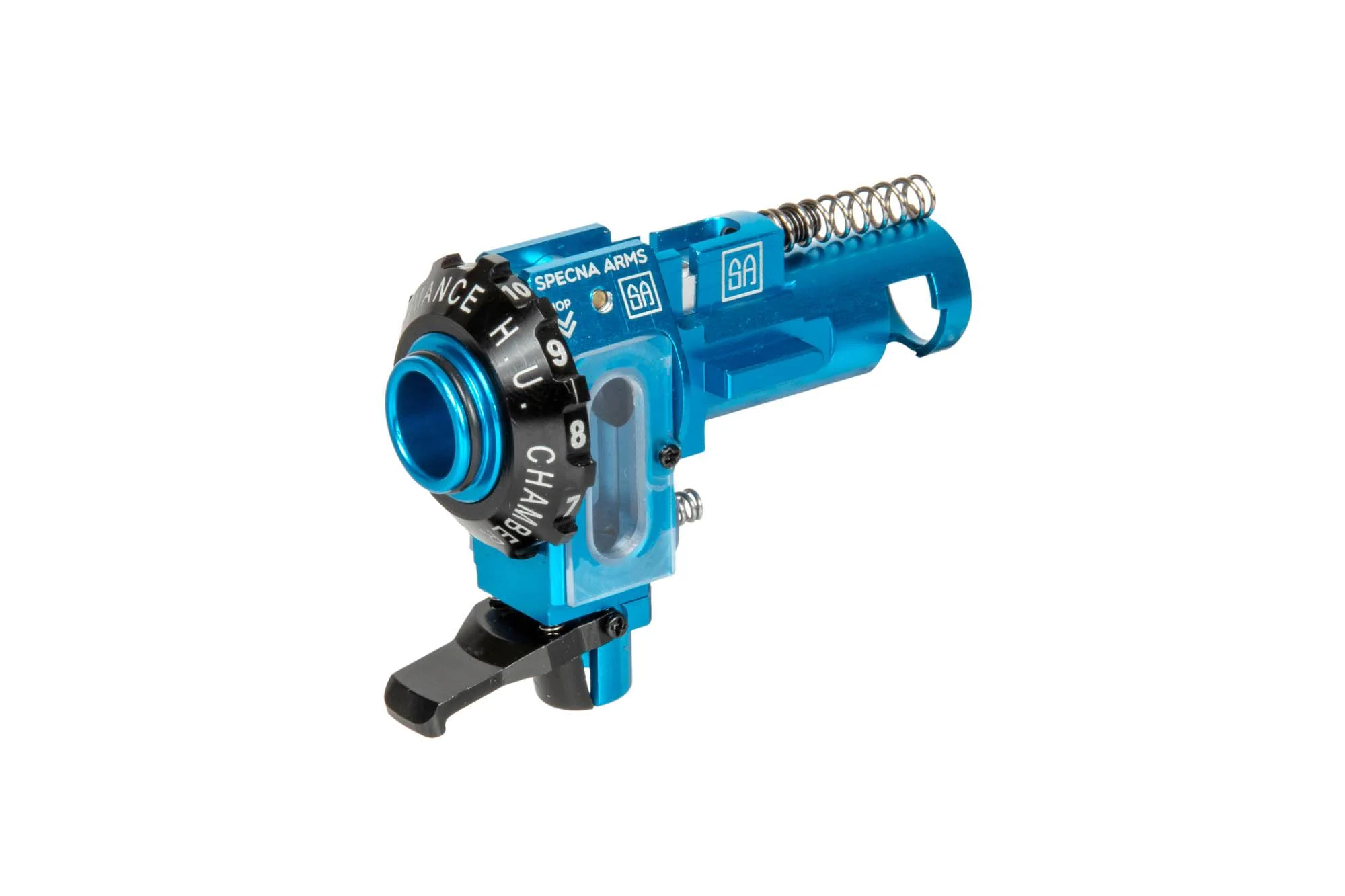

CNC ME - PRO Hop-Up Chamber for M4 (by Maxx Model)

CNC HopUp Chamber ME PRO for M4/M16 replicas (by Maxx Model)

Aluminum TOP QUALITY HopUp Chamber created from Specna Arms and Maxx Model Products cooperation. Tuning parts from this manufacturer are dedicated to the most demanding players, offering unprecedented precision on the market and perfect operation of the HU system in the replica.

Chamber features:

• precisely made from a block of aircraft aluminium using CNC technology
• guaranteed compatibility and tightness with M4/M16 replicas in Specna Arms / Tokyo Marui standard (including Krytac replicas, however NOT suitable for KWA)
• rotary knob for adjustment
• newly designed levers and concave nubs, ensuring smooth operation with standard and Rhop rubber bands
• removable brass Slot Pin for setup and maintenance
• works with nozzle lengths from 21.00mm to 21.25mm
• Fully compatible with most soft and hard HU rubbers on the market with zero FPS drop and ball drop
• equipped with a special CNC Delrin Locking CClip, preventing vibrations and movements of the barrel
• equipped with 3 compression springs on top, bottom and in the middle of the chamber, ensuring perfect and firm fitting in the replica
• compatibility with any V2 11mm / 11.5mm bore gearbox
• specially designed "BB Latching System", preventing the loss of pellets after removing the magazine from the replica
• opening window allows for easy bullet removal from inside the chamber
• possibility of mounting the illuminating module for bullets (not included)

Specifications:

• Length: 51mm
• Height: 37.75mm
• Hub Outer Diameter (for gearbox): min 11mm max 11.5mm
• Hub Outer Diameter (to outer barrel): min 12mm
• Hub Inner Diameter (to the nozzle): max 8.3mm
• Feeder Outer Diameter (to magazine): min 9.25mm
• Feeder Length (for magazine): max 6.25mm
• Construction: Aluminum 6061

Set contains:

1 x chamber with BB Latching system
2 x transparent vinyl cover
1 x StandardHop CNC aluminium arm
1 x Aluminum CNC RHop arm
1 x silicone StandardHop Nub Damper
1 x Silicone Rubber RHop Nub Damper
1 x CNC Aluminum Precision Hop Concave Nub 4.5mm
1 x CNC Precision Aluminum RHop Concave Nub 6mm
1 x CNC threaded brass Slot Pin
1 x Delrin Locking CClip CNC
1 x CNC Brass Barrel Spacer
1 x Brass Spacer Holder Oring
3 x steel compression spring Translated with www.DeepL.com/Translator (free version)
